文吉DC驅動器

csim

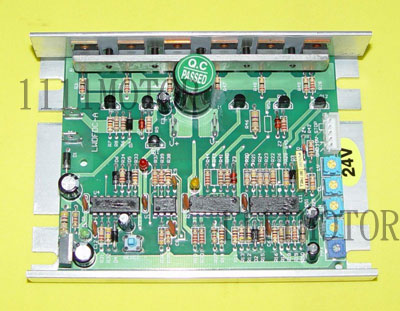

產品名稱	DC MOTOR SPEED CONTROLLER
輸入電源	ITEM CT-D05(12V) ITEM CT-D10(24V)
Adaptive motor	12V under 1/2 Hp 24V under 1 Hp
Control method	1.PWM Drive Control 2.computer connecting controt
主要功能	1.MIN SPEED:0-30% 2.MAX SPEED:50-100% 3.CN1 (COMPUTER CONNECTING) 0-10V MOTOR SPEED CONTROL MAX & MIN Unavailable I/P Pin 4:10V ,O/P Pin 5:GND 4.CN1(START/STOP)PIN1&PIN2 5.CL(CURRENT LIMIT): Motor rated current 150%-200% Automatically cut off the Voltage when Overload current 3 See. 6.LV: Set Aiready,Need not adjust 7.Accel(Acceleration time):0.5-4 sec. 8.Reset : When overload current,CL light on, Motor voltage Lockout,Push RESET button could release the situation,

　CONTROLLER 12_24V+connectting
